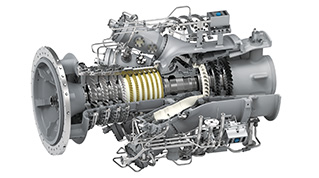

Gas Turbine Type M5A-01
Electrical power | 4,960 kW |
Fuel input | 14,500 kW |
Efficiency | 33.0 % |
Exhaust gas mass flow | 17.4 kg/s |
Exhaust gas temperature | 511°C |
Generator voltage | 6.3 kV 10.5 kV |
Steam mass flow 8 bar(g) saturated | 11 t/h |
Fuel type | Natural Gas |
Emissions | DLE, NOx: 15ppm CO: 50ppm |
Performance under ISO-conditions w/o duct losses at Generator Terminal |
